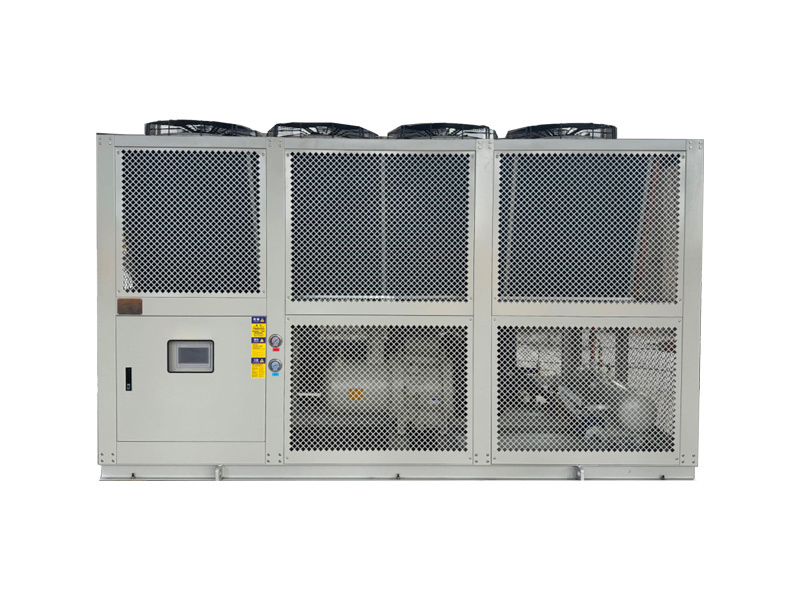

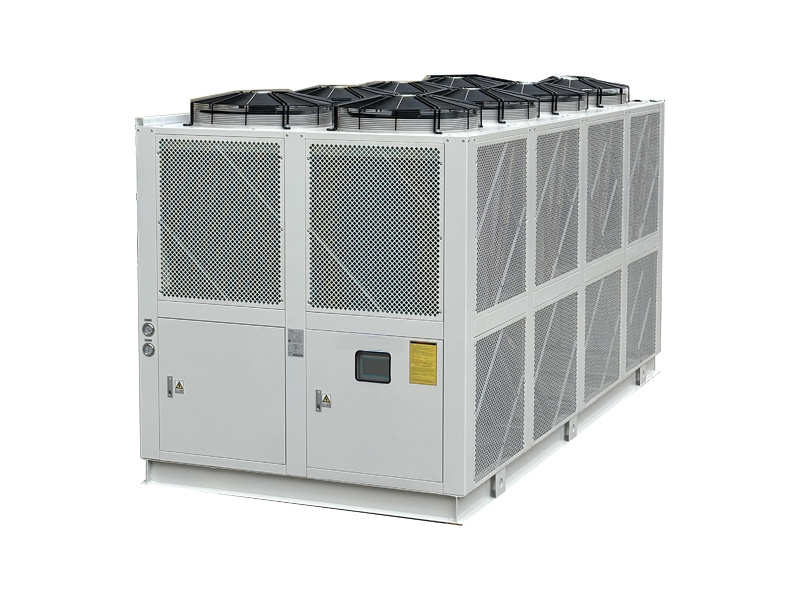

Air-cooled variable frequency magnetic levitation chiller

Quiet enough to hold a normal conversation even when the unit is running at full load! 30-520 refrigeration tons (105-1830 kW) Oil-free magnetic bearing compressor: R1234ze, R515B, R513A and R134a Groundbreaking low-noise and high-efficiency operation

Category:

Medium temperature series

Product Attachment:

Inquire Now

Overall Efficiency Improvement 50%

The air-cooled variable frequency magnetic levitation chiller has a cooling range of 35-520 refrigeration tons (105-1830 kW), sufficient to meet the application needs of all industries today.

30-520 refrigeration tons (105-1830 kW)

Oil-free magnetic levitation compressor:
R1234ze, R515B, R513A and R134a

High Efficiency and Energy Saving

High Energy Efficiency Ratio
Magnetic bearing technology eliminates the frictional losses of traditional mechanical bearings, significantly improving the unit's mechanical efficiency. Combined with variable frequency technology, it can flexibly adjust the compressor speed according to the actual load demand, maintaining efficient operation under different loads. The integrated partial load performance coefficient (IPLV) is high, with some products having an IPLV as high as 10 or more, and the energy efficiency advantage is even more obvious under partial load.

Stable and Reliable Operation

Magnetic Bearing Support

Magnetic bearings use electromagnetic force to levitate the compressor rotor in the air, avoiding the wear and tear, friction, and resulting mechanical failures of traditional mechanical bearings. This contactless support method makes the compressor run smoothly, with minimal vibration and low noise levels, effectively extending the service life of the unit.

Precise Control Technology

Equipped with an advanced control system, it monitors the operating status of the unit in real time and precisely controls parameters such as compressor speed and refrigerant flow, ensuring stable operation of the unit under various operating conditions. It also has fault self-diagnosis and warning functions, allowing it to promptly identify and handle potential problems.

Strong Surge Capacity

The compressor control module has a control curve for the safe operation of the compressor. By monitoring the operating status in real time and calculating the judgment, the speed is adjusted in time to ensure that the compressor always operates within the safe zone, avoiding surge damage to the unit.

Environmentally Friendly Refrigerant

Generally uses green and environmentally friendly refrigerants, such as HFC-134a, which do not damage the ozone layer and meet environmental protection requirements.

Low Starting Current

The starting current of the magnetic levitation compressor is very low, only a fraction of that of a traditional compressor, or even lower. It has minimal impact on the power grid, helping reduce power grid load fluctuations and lower the requirements and investment in power equipment.

Flexible Capacity Adjustment

It has a wide capacity adjustment range, generally achieving stepless adjustment from 10% to 100%, allowing precise adjustment of the cooling capacity according to the actual load requirements, avoiding energy waste, and meeting the changing load demands in different scenarios.

Low-Noise Operation

Due to the frictionless operation of the magnetic bearings and advanced noise reduction technology, the unit operates at low noise levels, typically around 77dB(A) or lower, providing users with a quiet working and living environment.

Compact Structure

The unit has a compact structural design, small footprint, saving installation space, and easy installation in different locations.

Intelligent Operation and Maintenance

Remote monitoring and management can be achieved via network connection. Users can view the unit's operating status, parameter settings, fault information, etc., and perform remote operation and control anytime, anywhere via mobile phones, computers, and other devices.

The Magnetic Levitation Chiller is a groundbreaking innovation in HVAC technology, designed to deliver unmatched energy efficiency, reliability, and performance. By utilizing advanced magnetic bearing compressors, this chiller eliminates mechanical friction, reducing energy consumption by up to 50% compared to traditional chillers. The frictionless operation ensures near-silent performance, making it ideal for noise-sensitive environments such as hospitals, data centers, and luxury commercial spaces.

Built for durability, the magnetic levitation chiller requires minimal maintenance due to the absence of oil-lubricated components, reducing downtime and lifecycle costs. Smart connectivity features enable remote monitoring and predictive maintenance, ensuring peak performance year-round.

Whether for industrial, commercial, or institutional applications, this chiller sets a new standard in energy savings, quiet operation, and long-term reliability. Upgrade to the future of cooling with the Magnetic Levitation Chiller.
